PEB全称为Process Environment Block，即进程环境块，每个进程都有自己的PEB，用于存放进程信息，位于用户地址空间。TEB全称为Thread Environment Block，即线程环境块，进程中的每个线程都有自己的TEB，用于保存频繁使用的线程相关的数据，位于用户地址空间，在比 PEB 所在地址低的地方。
一、线程环境块TEB
一个进程的所有TEB都以堆栈的方式，存放在从0x7FFDE000开始的线性内存中，每4KB为一个完整的TEB，不过该内存区域是向下扩展的。在用户模式，当前线程的TEB位于独立的4KB段，可通过CPU的FS寄存器来访问该段，一般存储在[FS:0]。在用户态下WinDbg中可用命令$thread取得TEB地址。
需要注意的是，FS:0指向线程环境块TEB，是FS段寄存器的基址。在FS:0所指向的TEB结构中，第一个元素的值为FS:[0]，指向当前线程的结构化异常处理结构SEH。
typedef struct _TEB {
+000h NT_TIB Tib;
+01Ch PVOID EnvironmentPointer;
+020h CLIENT_ID Cid;
+028h PVOID ActiveRpcInfo;
+02Ch PVOID ThreadLocalStoragePointer;
+030h PPEB Peb;
+034h ULONG LastErrorValue;
+038h ULONG CountOfOwnedCriticalSections;
+03Ch PVOID CsrClientThread;
+040h PVOID Win32ThreadInfo;
+044h ULONG Win32ClientInfo[0x1F];
+0C0h PVOID WOW32Reserved;
+0C4h ULONG CurrentLocale;
+0C8h ULONG FpSoftwareStatusRegister;
+0CCh PVOID SystemReserved1[0x36];
+1A4h PVOID Spare1;
+1A8h LONG ExceptionCode;
+1ACh BYTE SpareBytes1[0x28];
+1D4h PVOID SystemReserved2[0xA];
+1FCh GDI_TEB_BATCH GdiTebBatch;
+6DCh ULONG GdiRgn;
+6E0h ULONG GdiPen;
+6E4h ULONG GdiBrush;
+6E8h CLIENT_ID RealClientId;
+6F0h PVOID GdiCachedProcessHandle;
+6F4h ULONG GdiClientPID;
+6F8h ULONG GdiClientTID;
+6FCh PVOID GdiThreadLocaleInfo;
+700h PVOID UserReserved[0x5];
+714h PVOID GLDispatchTable[0x118];
+B74h ULONG GLReserved1[0x1A];
+BDCh PVOID GLReserved2;
+BE0h PVOID GLSectionInfo;
+BE4h PVOID GLSection;
+BE8h PVOID GLTable;
+BECh PVOID GLCurrentRC;
+BF0h PVOID GLContext;
+BF4h NTSTATUS LastStatusValue;
+BF8h UNICODE_STRING StaticUnicodeString;
+C00h WCHAR StaticUnicodeBuffer[0x105];
+E0Ch PVOID DealLocationStack;
+E10h PVOID TlsSlots[0x40];
+F10h LIST_ENTRY TlsLinks;
+F18h PVOID Vdm;
+F1Ch PVOID ReservedForNtRpc;
+F20h PVOID DbgSsReserved[0x2];
+F28h ULONG HardErrorDisabled;
+F2Ch PVOID Instrumentation[0x10];
+F6Ch PVOID WinSockData;
+F70h ULONG GdiBatchCount;
+F74h ULONG Spare2;
+F78h ULONG Spare3;
+F7Ch ULONG Spare4;
+F80h PVOID ReservedForOle; //Windows 2000 only
+F84h ULONG WaitingOnLoaderLock;
+F88h PVOID StackCommit;
+F8Ch PVOID StackCommitMax;
+F90h PVOID StackReserve;
+F94h PVOID MessageQueue;
} TEB, *PTEB;
注：从偏移0x38开始之后的字段有待验证。
- 线程信息块TIB
typedef struct _NT_TIB {
+000h _EXCEPTION_REGISTRATION_RECORD* ExceptionList;
+004h PVOID StackBase;
+008h PVOID StackLimit;
+00Ch PVOID SubSystemTib;
#if defined(_MSC_EXTENSIONS)
union {
+010h PVOID FiberData;
+010h DWORD Version;
};
#else
+010h PVOID FiberData;
#endif
+014h PVOID ArbitraryUserPointer;
+018h TEB* Self;
} NT_TIB, *PNT_TIB;
- CLIENT_ID结构
typedef struct _CLIENT_ID {
+000h ULONG UniqueProcess;
+004h ULONG UniqueThread;
} CLIENT_ID, *PCLIENT_ID;
二、进程环境块PEB
准确的PEB地址应从EPROCESS结构的0x1b0偏移处获得，但由于EPROCESS位于系统地址空间，访问这个结构需要有ring0的权限，所以可从TEB结构的偏移0x30处获得PEB的位置，FS段寄存器指向当前的TEB结构，FS:[0x30]即PEB地址。在用户态下WinDbg中，可用命令$proc取得PEB地址。
结构体PEB的定义在头文件winternl.h中给出，从微软官方SDK文档给出的定义可知，大量的成员变量都被隐藏了，无法知晓这些变量的具体含义，但可以使用调试器打印出PEB的详细信息，从而猜测各变量含义。关于PEB的参考资料：
- Undocumented Functions
- 《Windows内核情景分析》P247
typedef struct _PEB {
+000h UCHAR InheritedAddressSpace;
+001h UCHAR ReadImageFileExecOptions;
+002h UCHAR BeingDebugged;
+003h UCHAR SpareBool;
+004h HANDLE Mutant;
+008h PVOID ImageBaseAddress; // 程序加载的基地址
+00Ch PPEB_LDR_DATA Ldr; // 进程加载的模块链表
+010h PRTL_USER_PROCESS_PARAMETERS ProcessParameters;
+014h PVOID SubSystemData;
+018h PVOID ProcessHeap;
+01Ch PVOID FastPebLock;
+020h PPEBLOCKROUTINE FastPebLockRoutine;
+024h PPEBLOCKROUTINE FastPebUnlockRoutine;
+028h ULONG EnvironmentUpdateCount;
+02Ch PVOID* KernelCallbackTable; // 用于从内核回调用户空间的函数
+030h PVOID EventLogSection;
+034h PVOID EventLog;
+038h PPEB_FREE_BLOCK FreeList;
+03Ch ULONG TlsExpansionCounter;
+040h PVOID TlsBitmap; // TLS位图
+044h ULONG TlsBitmapBits[0x2];
+04Ch PVOID ReadOnlySharedMemoryBase;
+050h PVOID ReadOnlySharedMemoryHeap;
+054h PVOID* ReadOnlyStaticServerData;
+058h PVOID AnsiCodePageData;
+05Ch PVOID OemCodePageData;
+060h PVOID UnicodeCaseTableData;
+064h ULONG NumberOfProcessors;
+068h ULONG NtGlobalFlag;
+06Ch BYTE Spare2[0x4];
+070h LARGE_INTEGER CriticalSectionTimeout;
+078h ULONG HeapSegmentReserve;
+07Ch ULONG HeapSegmentCommit;
+080h ULONG HeapDeCommitTotalFreeThreshold;
+084h ULONG HeapDeCommitFreeBlockThreshold;
+088h ULONG NumberOfHeaps;
+08Ch ULONG MaximumNumberOfHeaps;
+090h PVOID** ProcessHeaps;
+094h PVOID GdiSharedHandleTable;
+098h PVOID ProcessStarterHelper;
+09Ch PVOID GdiDCAttributeList;
+0A0h PVOID LoaderLock;
+0A4h ULONG OSMajorVersion;
+0A8h ULONG OSMinorVersion;
+0ACh ULONG OSBuildNumber;
+0B0h ULONG OSPlatformId;
+0B4h ULONG ImageSubSystem;
+0B8h ULONG ImageSubSystemMajorVersion;
+0BCh ULONG ImageSubSystemMinorVersion;
+0C0h ULONG ImageProcessAffinityMask;
+0C4h ULONG GdiHandleBuffer[0x22];
+14Ch ULONG PostProcessInitRoutine;
+150h ULONG TlsExpansionBitmap;
+154h ULONG TlsExpansionBitmapBits[0x20];
+1D4h ULONG SessionId;
} PEB, *PPEB;
注：靠后的字段有待验证。
- PEB_LDR_DATA结构
PEB_LDR_DATA结构的最后三个成员与_LDR_MODULE结构中前三项一一对应，分别是按照加载顺序、按照在内存中地址顺序、按照初始化顺序进行排列的模块信息结构的双向链表。_LDR_MODULE结构，其实就是_LDR_DATA_TABLE_ENTRY结构。
在初始化过程中，一般是先初始内核模块，然后到应用层，而在内存中一般先是用户层模块，之后是内核模块。
typedef struct _PEB_LDR_DATA {
+000h ULONG Length;
+004h BOOLEAN Initialized; // 此处需字节对齐
+008h PVOID SsHandle;
+00Ch LIST_ENTRY InLoadOrderModuleList;
+014h LIST_ENTRY InMemoryOrderModuleList;
+01Ch LIST_ENTRY InInitializationOrderModuleList;
+024h PVOID EntryInProgress;
} PEB_LDR_DATA, *PPEB_LDR_DATA;
- 模块链表
typedef struct _LIST_ENTRY {
+001h _LIST_ENTRY* Flink; // 指向下一个节点
+004h _LIST_ENTRY* Blink; // 指向前一个节点
} LIST_ENTRY, *PLIST_ENTRY;
- 模块信息结构
typedef struct _LDR_MODULE {
+000h LIST_ENTRY InLoadOrderModuleList; // 按加载模块顺序的模块链表
+008h LIST_ENTRY InMemoryOrderModuleList; // 按在内存中顺序的模块链表
+010h LIST_ENTRY InInitializationOrderModuleList; // 按初始化顺序
+018h PVOID BaseAddress; // 模块的基地址
+01Ch PVOID EntryPoint; // 模块的入口
+020h ULONG SizeOfImage; // 模块镜像大小
+024h UNICODE_STRING FullDllName; // 模块的路径名
+028h UNICODE_STRING BaseDllName; // 模块名
+02Ch ULONG Flags;
+030h SHORT LoadCount; // 引用计数
+032h SHORT TlsIndex;
+034h LIST_ENTRY HashTableEntry;
+03Ch ULONG TimeDateStamp;
} LDR_MODULE, *PLDR_MODULE;

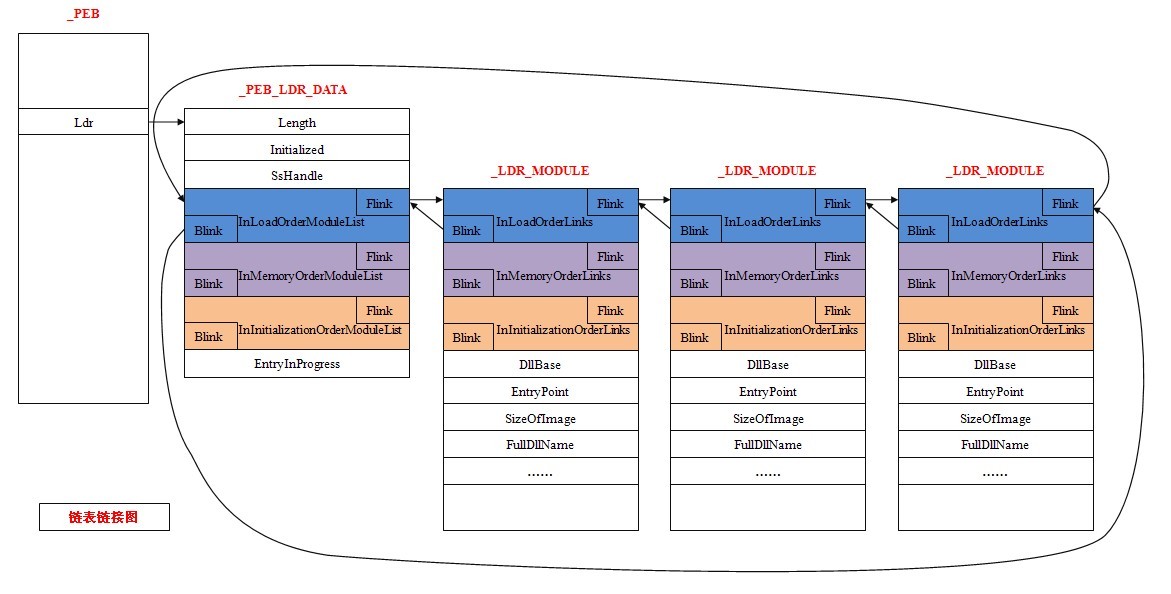

模块链表图解：
